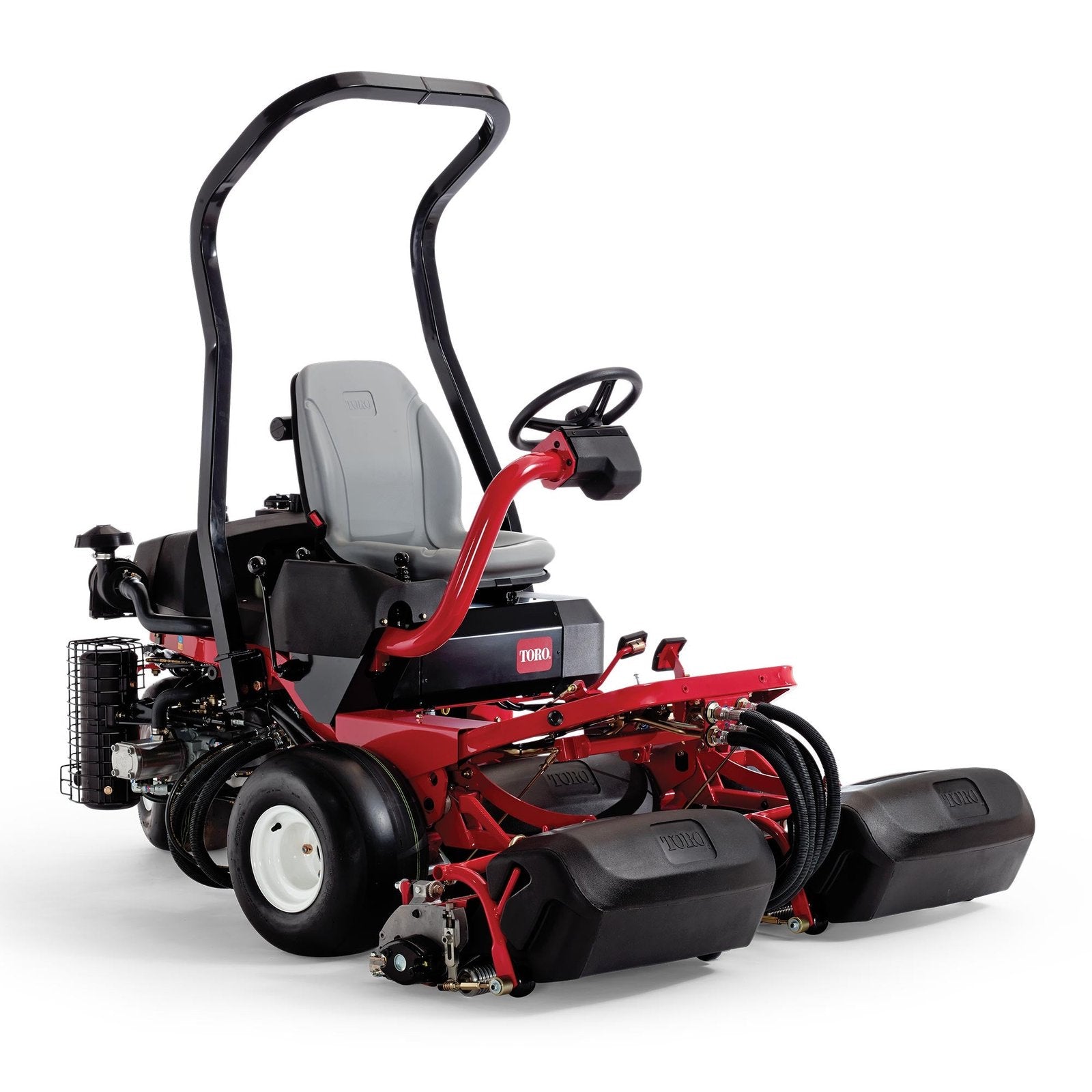

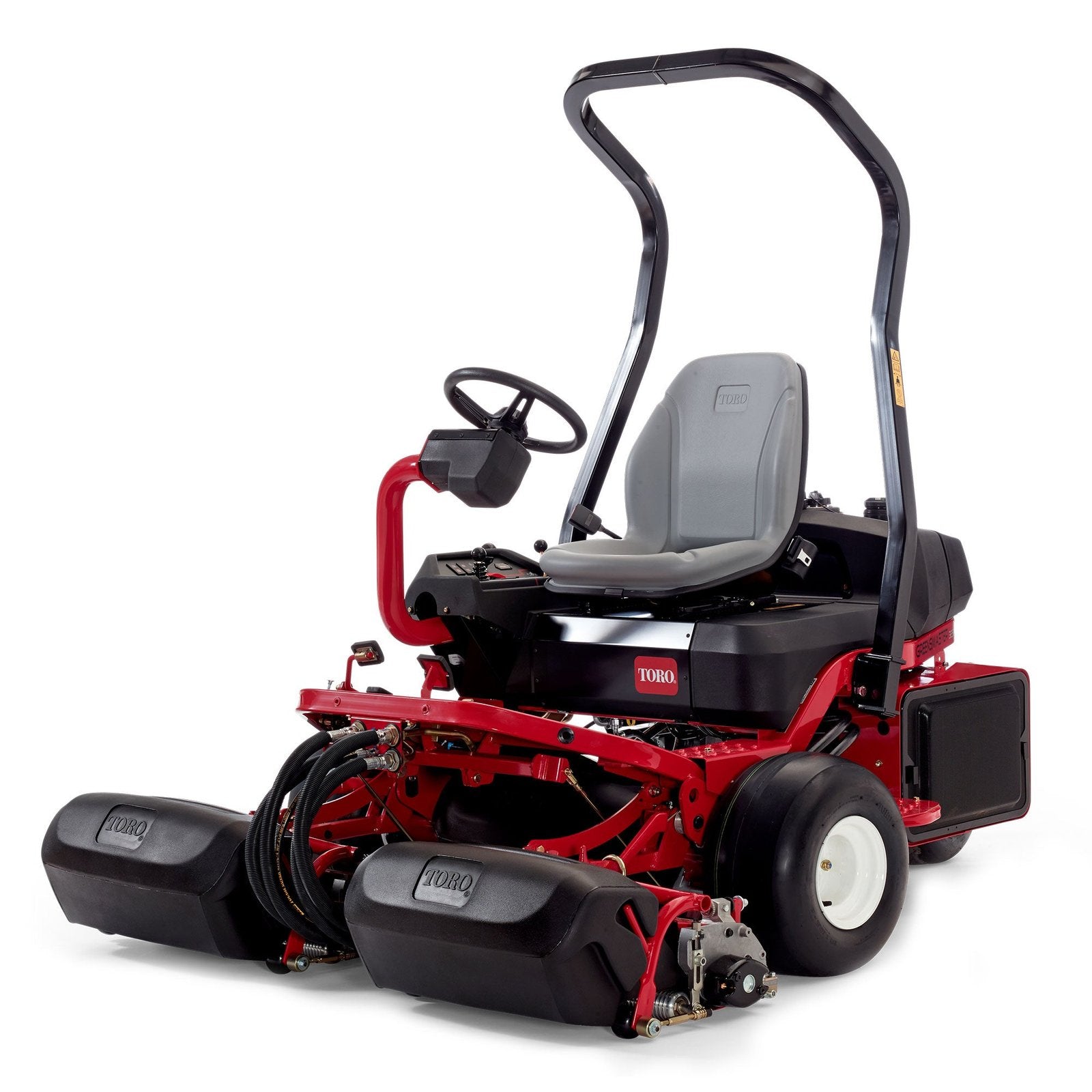

The Greensmaster 3250-D is distinguished for its field-proven performance and exceptional quality of cut. Equipped with patented DPA cutting units for a superior cut and minimal maintenance, convenient controls for easy operation, and ample power to handle any application–it’s no wonder this classic model has been trusted over the years to deliver the performance golf courses demand with a putting surface that exceeds expectations.

Battery: 12V

Bedknife: Replaceable single edged EdgeMax™ Microcut Bedknife is standard.

Bedknife Adjustment: Dual screw, indexed “click” adjustment to the reel; detents corresponding positively to 0.0007″ (0.018 mm) bedknife movement for each position.

Blade Style/Type: Reel

Blade Type (Description): Reels are 5″ (13 cm) in diameter, 21″ (53.3 cm) in length. EdgeSeries™ Reels blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for diameter and concentricity, and relief ground. The reel weldment shaft is a 1.375″ (35 mm) diameter tube with internally splined threaded insert. Two stainless steel ball bearings (30 mm inside diameter) slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut.

Clip Frequency/Backlapping: Adjustable up to 1950 RPM at 2760 engine RPM. Backlapping standard.

Controls: Raise/lower-mow lever. Functional control lever (neutral, mow, transport). Foot operated traction drive and brakes. Hand operated choke, throttle. Mechanical engine speed control.

Cutting Unit Accessories: 8, 11, 14-Blade Cutting Unit, Roller Options, Groomer Options, Scraper Options, Bedknife and Bedbar Options, Thatching Reel Accessories, Tools and Maintenance Options.

Cutting Unit Type/Configuration: Cutting units are completely free-floating, each attaching to the tractor by direct pull links and lifted by a centered lift arm. Baskets are supported by carrier frames that are ground following. Cutting unit floatation is unaffected by basket content. Grass baskets are all interchangeable and accessible from the front of the machine. Double A-Arm Suspension utilizing sealed ball joints allows free cutting unit motion in pitch and yaw. Links system for the roll. The basket is directly mounted to the cutting unit displacing weight evenly over front and rear rollers. (patented)

Drivetrain: Diesel

Electrical System: Maintenance-free 12-volt battery with 530 minimum CCA at 0° F. 40 amp alternator, circuit fused at 40 amps. Seat switch. High temperature engine kill override switch. Harness terminals, fuse slot, and console switch location available for optional lights installation.

Engine Cooling: Liquid Cooled

Fuel / Power Source: Diesel

Fuel Capacity: 6 U.S. gal. (22.7 L)

Gauges/Instrumentation: Hour meter and warning light cluster.

Grass Distribution: Non-adjustable front shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.

Ground Pressure: 8 – 12 psi (.55 – .83 bar) average at recommended minimum tire pressures, with a 200 lb. operator and cutting units down.

Ground Speed – Forward: 0 – 10 mph (0 – 16.1 km/h)

Height: 77.5″ (197 cm)

Height of Cut Range: Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is 0.062″ – 0.297″ (1.6 – 7.5 mm). With high HOC kit, range is 0.297″ – 1.0″ (7.5 – 25.4 mm). Effective HOC may vary depending on turf conditions and bedknife installed.

Leak Detection: Optional Turf Guardian™ Leak Detection System. System sounds an alarm and turns on a warning light with the loss of 3-5 oz. of hydraulic fluid.

Mowing Speed: 2 – 5 mph (3.2 – 8 km/h)

Number of Blades: 11, 14, 8

Optional Accessories: 3-Wheel Drive Kit, Thatching Reel (Set of 1), Traction Tires, Hydraulic Oil Cooler Kit, Light Kit, Spark Arrestor, Leak Detector, Front Wheel Weight Kit, 2WD Weight Kit, 3WD Weight Kit, Hose Adapter Kit, Radiator Screen Kit, Ground Follow Kit, Bimini Folding Shade, Utility Bag Kit, Seat Cover, RH Armrest, LH Armrest, Armrest Kit, Wireless Hour Meter

Overall Width: 68″ (173 cm)

Parking/Service Brakes: Foot activated 6″ (15.2 cm) drum type mechanical with rack and pawl lock for parking.

Power Steering: Yes

Power Train (Engine Description): Kubota® 902 tier 4i, 3-cylinder liquid-cooled diesel engine. 55.0 cu. in. (902 cc). Full pressure lubrication, oil filter. 24.8 hp (18.5 kW) @ 3600 rpm. Engine governed to 2760 rpm high idle, 1500 rpm low idle (no load).

Product Length: 93.9″ (238 cm) with baskets

Reel Diameter: 5 in. (12.7cm)

Reel/Cylinder Drive: Hydraulic

Rollers: Front: Not included with cutting unit, purchased separately. Option between full, narrow-spaced and wide-spaced roller.

Rear: Steel full, 2″ (5.1 cm) diameter with sealed bearings and through-shaft.

Safety/Operator Safety: Roll Over Protection System standard. Sound level of 84 dBA at operator ear under normal conditions.

Seat: Contour seat with high backrest. 7″ (17.8 cm) fore/aft slider adjustment with two mounting positions, allowing 9″ (22.8 cm) total seat travel. Operator manual tube mounted on the seat back for easy access.

Starting: Key Start

Steering System Description: No-tool quick adjust steering arm position, with arm motion allowing a wide range of operator sizes. Steering cylinder has through shaft design for precise straight line tracking.

Tires – Front: 19″ x 10.5″ – 8″, 4-ply, Smooth Tread

Tires – Rear: 19″ x 10.5″ – 8″, 4-ply, Smooth Tread

Traction Drive: 2WD

Traction Drive (System): Hydraulic piston pump, closed loop system. 2WD Parallel Hydrostatic or optional 3WD Series Parallel piston pump closed loop system. Foot pedal forward and reverse; infinitely variable.

Transport Width: Outside at Tires: 61″ (154.94 cm)

Outside at Reels: 68″ (173 cm)

Weight: 1,216 lbs. (552 kg) with no fuel & no operator

Wheelbase: 48.6″ (123 cm)

Width of Cut: 59″ (150 cm)
