The Groundsmaster® 3300 delivers unparalleled productivity. Featuring a powerful 36.8 hp (27.5kW) diesel engine, CrossTrax® all-wheel drive and legendary Groundsmaster decks, the Groundsmaster 3300 makes quick work in even the toughest terrain while delivering an exceptional quality of cut. From the fully adjustable suspension seat and steering column to the fingertip engine controls and optional cab, this new mower is designed for all-day comfort. Routine maintenance is also easy with the Groundsmaster 3300 with the innovative tilt-up deck design making blade maintenance and deck cleaning simple. Productivity, comfort, reliability. That’s the Groundsmaster 3300.

Armrests: Standard

Battery: 12V

Blade Style/Type: Rotary

Cab Unit: N/A

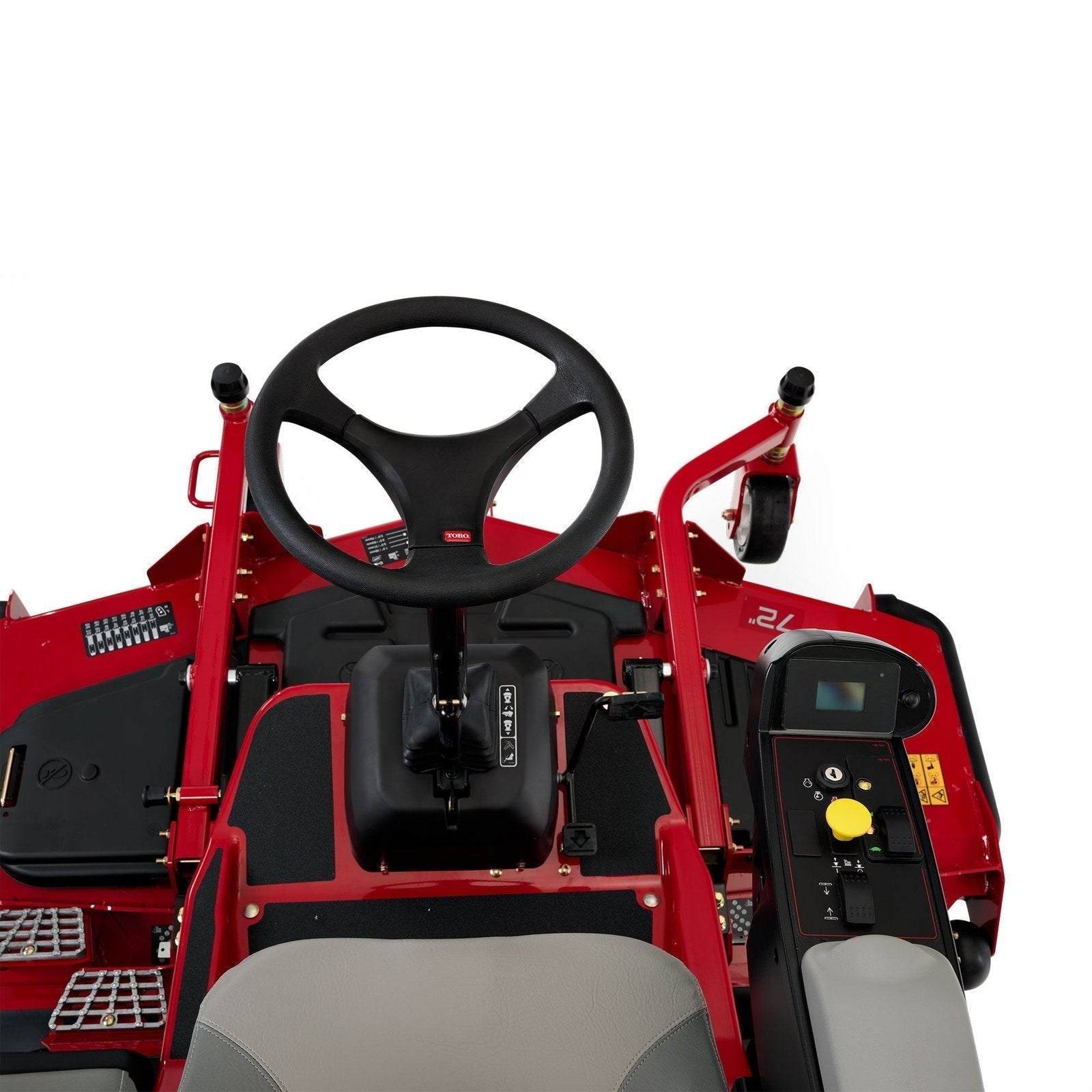

Controls: Foot-operated pedal for forward and reverse. Manually adjustable forward speed limiter. Control arm includes hand-operated throttle, PTO switch, deck/implement lift lower switch, ignition switch, glow plug switch

Cooling System Description: Rear-mount, cross flow radiator with 8.5 fins per 1″ (25 mm), 8 quart (7.6 liter) capacity

Cup Holder: Standard

Cutting Unit Type/Configuration: 72″ (183 cm) Side Discharge Deck

Drivetrain: Diesel

Electrical System: 12V maintenance-free battery with 540 cold cranking amps at 0 degrees F (-18 degrees C). 80 minute reserve capacity at 80 degrees F (27 degrees C). 40-amp alternator.

Engine Cooling: Liquid Cooled

Fuel / Power Source: Diesel

Fuel Capacity: 12 U.S. gal. (45.4 L)

Fuel Filter: Fuel filter/water separator

Gauges/Instrumentation: InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates coolant temps, oil pressure, alternator voltage, engine hours.

Ground Clearance: 8.3″ (21 cm)

Ground Speed – Forward: 0 – 15 mph (0 – 24 km/h)

Ground Speed – Reverse: 0 – 6 mph (0 – 9.7 km/h)

Height: 79″ (200.6 cm) with ROPS up

Hydraulic Cylinders: Twin 2.5″ (6.4 cm) bore, 1.25″ (3.2 cm) rod hydraulic cylinders operate lift arms. Hydraulic counterbalance for optimum traction and stability.

Hydraulic Fluid Type: Toro PX™ Extended Life Hydraulic Fluid

IntelliDash™ Capable: No

Interlocks: Seat, PTO, lift/lower, traction, parking brake

Lighting: Optional

Main Frame/Chassis: All welded tubular and formed steel

Max Slope Angle: Refer to operator’s manual

Mowing Rate (Productivity): Up to 7.3 acres/hr (2.9 hectacres/hr) with 60″ deck

Up to 8.7 acres/hr (3.5 hectacres/hr) with 72″ deck

Oil Capacity: 5.2 L (5.5 US qt)

Optional Accessories: LED kits: work light, road light, beacon; recycler kits, slope sensor kit, heat only cab, accs control kit, storage box kit, USB charging kit, aux hydraulic kit, hydraulic hose kit, SMV kit, storage bag kit, power harness kit, ROPS-certified heat-only cab

Overall Width: 53.5″ (135.9 cm)

Parking/Service Brakes: Dynamic braking through hydrostat and foot pedal. Parking Brake: Hand-actuated drum type on front left and right traction wheels.

Power Steering: Yes

Power Train (Engine Description): Yanmar® 3-cylinder, liquid-cooled diesel. Power:36.8 hp(27.5kW) @ 3000 rpm, Torque peak: 80.7 ft-lbs. (109.4 Nm) @ 1950 rpm. Displacement 1642cc. EPA Tier IV Final / Stage V compliant.

Product Length: 107″ (271.7 cm)

PTO Clutch: Engine mounted 350 ft. lb. (475 Nm) rated electro-magnetic PTO clutch drives 2″ (5 cm) telescoping shaft. Rotary deck connection allows for tip-up service position without disconnection of PTO.

Seat: Deluxe bolstered seat with retractable seat belt

Starting: Key Start

Steering System Description: Hydraulic power steering. Tilt steering wheel released and locked by a foot-actuated lever.

Tires – Front: 24″ x 12″ – 12″, 4-ply

Tires – Rear: 18” x 9.5” – 8”, Turf Tire

Tool Box: Optional

Traction Drive: 4WD

Traction Drive (System): CrossTrax® 4WD. Series/Parallel hydraulic traction system w/ full time, bi-directional 4-wheel drive. Parallel Series hydraulic flow between front and rear wheels.

Weight: 1,886 lbs. (855 kg)

Wheelbase: 52″ (132 cm)

Width of Cut: 72″ (183 cm)
