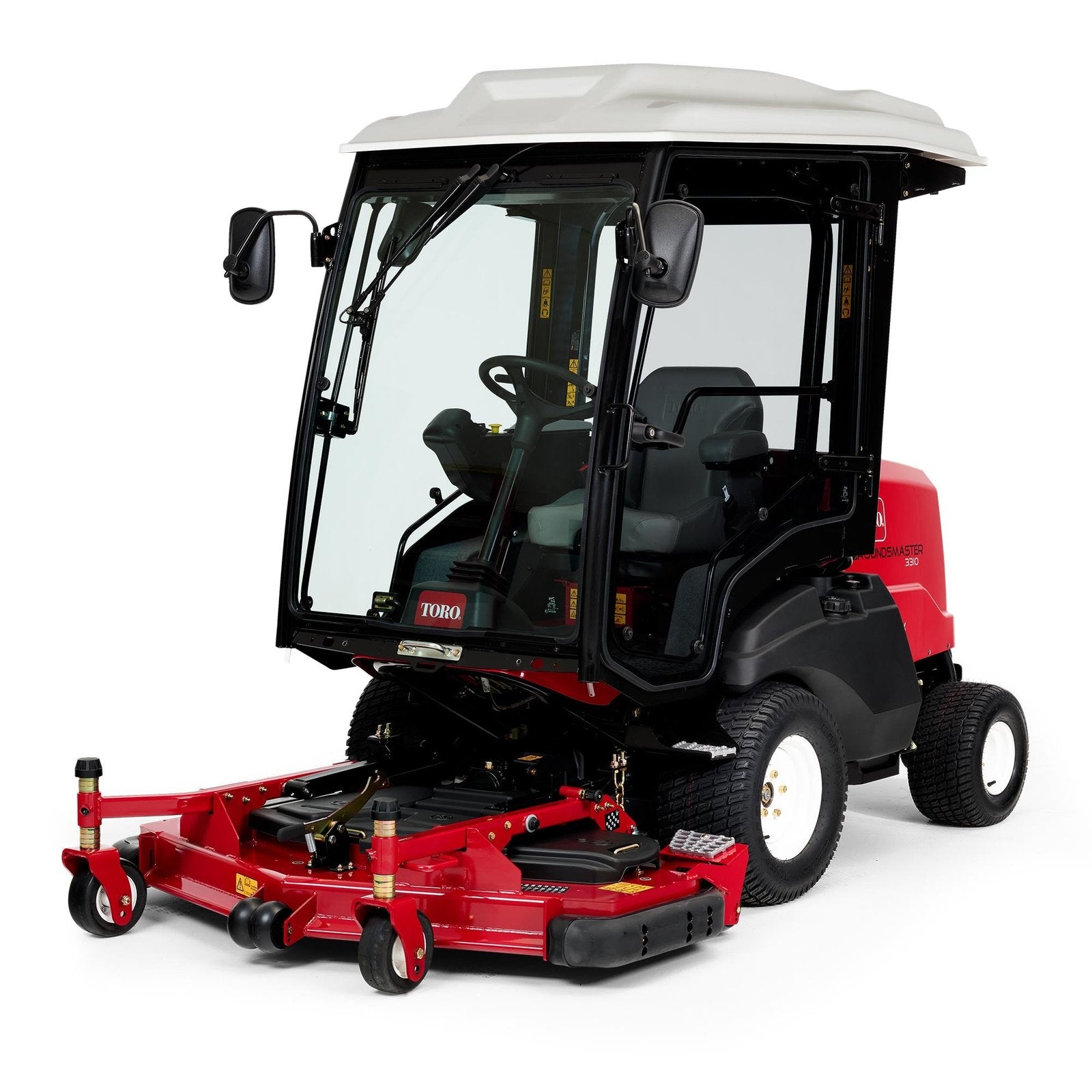

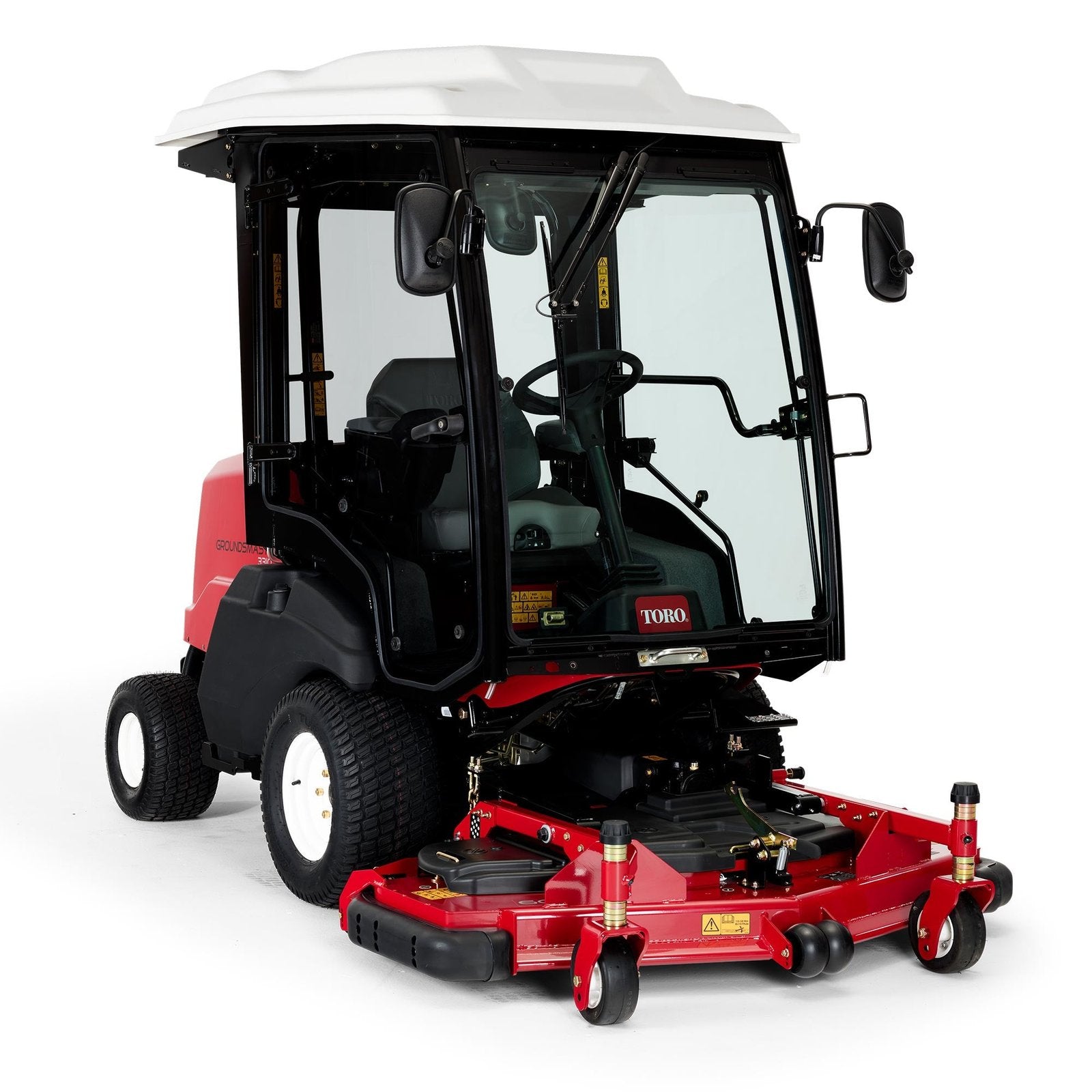

The Groundsmaster® 3310 delivers unparalleled productivity. Featuring a powerful 36.8 hp (27.5kW) diesel engine, CrossTrax® all-wheel drive and legendary Groundsmaster decks, the Groundsmaster 3310 makes quick work in even the toughest terrain while delivering an exceptional quality of cut. From the fully adjustable suspension seat and steering column to the fingertip engine controls and all-season cab, this new mower is designed for all-day comfort. Routine maintenance is also easy with the Groundsmaster 3310 with the innovative tilt-up deck design making blade maintenance and deck cleaning simple. Productivity, comfort, reliability. That’s the Groundsmaster 3310.

Air Filter: Remote-mounted Donaldson® air cleaner

Armrests: Standard

Battery: 12V

Blade Style/Type: Rotary

Cab Unit: Heat & Air-Conditioned Safety Cab

Cab Unit Description: Factory installed, ROPS certified cab with AC and heat. Tempered curved windshield, tinted side and rear glass (50% tint); front wiper/washer; interior mirror and exterior side mirrors; SMV sign; road light kit and work light kit sold separately.

Controls: Foot-operated pedal for forward and reverse. Manually adjustable forward speed limiter. Control arm includes hand-operated throttle, PTO switch, deck/implement lift lower switch, ignition switch.

Cooling System Description: Rear-mount, cross flow radiator with 8.5 fins per 1″ (25 mm), 8 quart (7.6 liter) capacity

Cup Holder: Standard

Cutting Unit Type/Configuration: 72″ (183 cm) Rear Discharge Deck

Drivetrain: Diesel

Electrical System: 12-volt maintenance-free battery with 540 cold cranking amps at 0 degrees F (-18 degrees C). 80 minute reserve capacity at 80 degrees F (27 degrees C). 55 amp alternator. Easy access to fuse panel.

Engine Cooling: Liquid Cooled

Fuel / Power Source: Diesel

Fuel Capacity: 12 U.S. gal. (45.4 L)

Fuel Filter: Fuel filter/water separator.

Gauges/Instrumentation: InfoCenter™: LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates coolant temps, oil pressure, alternator voltage, engine hours, engine RPM.

Ground Clearance: 8.3″ (21 cm)

Ground Speed – Forward: 0 – 15 mph (0 – 24 km/h)

Ground Speed – Reverse: 0 – 6 mph (0 – 9.7 km/h)

Height: 89″ (226 cm)

Hydraulic Cylinders: Twin 2.5″ (6.4 cm) bore, 1.25″ (3.2 cm) rod hydraulic cylinders operate lift arms. Hydraulic counterbalance for optimum traction and stability.

IntelliDash™ Capable: No

Interlocks: Seat, PTO, lift/lower, traction and parking brake interlock switches

Lighting: Optional

Main Frame/Chassis: All welded tubular and formed steel

Max Slope Angle: Refer to operator’s manual

Mowing Rate (Productivity): Up to 7.3 acres/hr (2.9 hectacres/hr) with 60″ deck

Up to 8.7 acres/hr (3.5 hectacres/hr) with 72″ deck

Oil Capacity: 5.5 US qt (5.2 L)

Operator Area: Operator step, beverage holder, controls on right armrest

Optional Accessories: LED work light kit, LED road light kit, LED beacon kit, recycler kits, slope sensor kit, heat only cab, accessory control kit, storage box kit, USB charging kit, auxiliary hydraulic kit, hydraulic hose kit, SMV kit, storage bag kit, power harness kit

Overall Width: 53.1″ (134.8 cm)

Power Steering: Yes

Power Train (Engine Description): Yanmar® 3-cylinder, liquid-cooled diesel. Power:36.8 hp(27.5kW) @ 3000 rpm, Torque peak: 80.7 ft-lbs. (109.4 Nm) @ 1950 rpm. Displacement 1642cc. EPA Tier IV Final / Stage V compliant.

Product Length: 107″ (271.7 cm)

PTO Clutch: Engine mounted 350 ft. lb. (475 Nm) rated electro-magnetic PTO clutch drives 2″ (5 cm) telescoping shaft. Rotary deck connection allows for tip-up service position without disconnection of PTO.

Seat: Adjustable air-ride suspension seat with retractable seat belt

Starting: Key Start

Steering System Description: Hydraulic power steering. Tilt steering wheel released and locked by a foot-actuated lever.

Tires – Front: 24″ x 12″ – 12″, 4-ply

Tires – Rear: 18” x 9.5” – 8”, Turf Tire

Tool Box: Optional

Traction Drive: 4WD

Traction Drive (System): CrossTrax® 4WD. Series/Parallel hydraulic traction system w/ full time, bi-directional 4-wheel drive. Parallel Series hydraulic flow between front and rear wheels.

Weight: 2,486 lbs. (1128 kg)

Wheelbase: 51.5″ (130.8 cm)

Width of Cut: 72″ (183 cm)
