Product Description

Free Shipping!

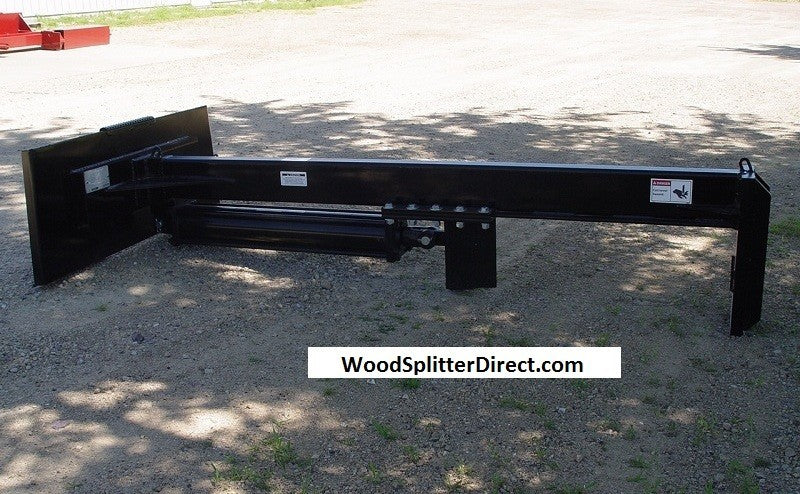

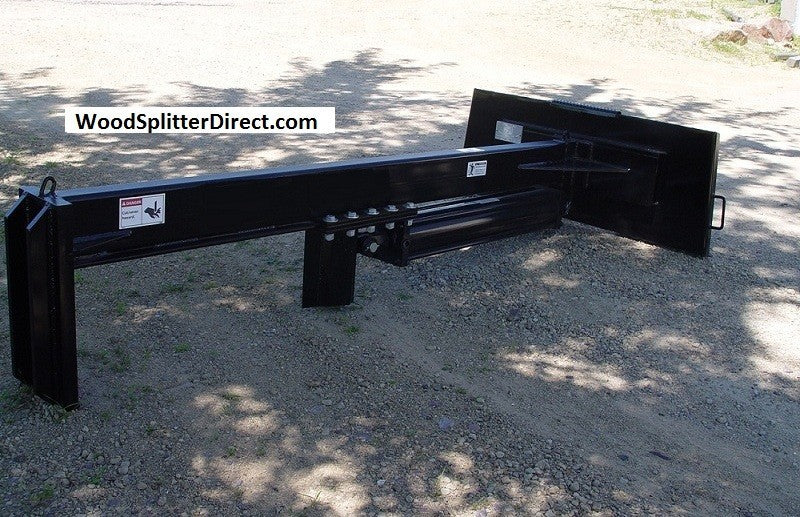

The SB-424 ton skid loader wood splitter attaches to your skid steer converting it into an effective tool for splitting firewood into manageable sized pieces. This innovative design allows the operator to position the splitter over the log and split it as it lays on the ground.

This attachment can also grip the log for positioning over a wagon or truck bed eliminating the task of lifting the split wood into the transport vehicle. This log splitter has 1/4″ walls and a welded cylinder for long lasting use.

Splits logs up to 25 inches long

Up to 40,000 lbs of Ram Pressure
4 Inch Cylinder with 24 Inch Ram Stroke
10 Inch Splitting wedge
6 x 3 Tubular Design Beam 1/4″ Walls
Heavy Construction Universal Mounting Plate
ONE YEAR WARRANTY ON ALL PARTS

Splitters are sand blasted and wiped down before paint. Splitters are painted with Diamond Vogel, Pinnacle 460 3.5 VOC 2 part Polyurethane. Hoses and flat face disconnects are included.

Made in the USA!

These deliveries will be made with a full size freight truck and there will be little or no assistance provided with unloading the items. If you feel that you will need a lift gate to help unload your item please select the lift gate delivery option. If you do not you will be responsible for getting the shipment off the back of the semi-truck.

Detailed Specifications

Tonnage:

20 Ton (40,000 lbs)

Cylinder:

4″ x 24″ – Welded cylinder

Opening Size:

25 Inch Opening Length

Beam:

6 x 3 Tubular Design, 1/4″ Walls

Color:

Black Only

Mounting Plate:

Universal ( 2 quick attach lock handle type)

Weight:

485 lbs

Length:

78 Inches

Wedge:

Single 10″ High

Warranty:

1 Year

Hoses & Connectors:

Included- Hoses & flat face disconnects

Made in USA:

Yes!

4 Way Wedge:

No – Not available
