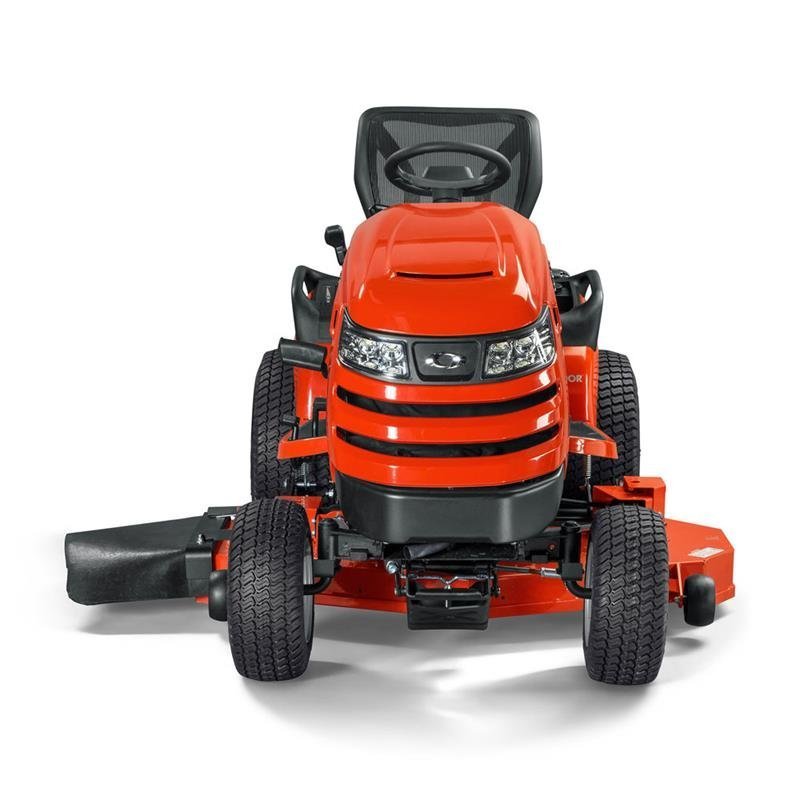

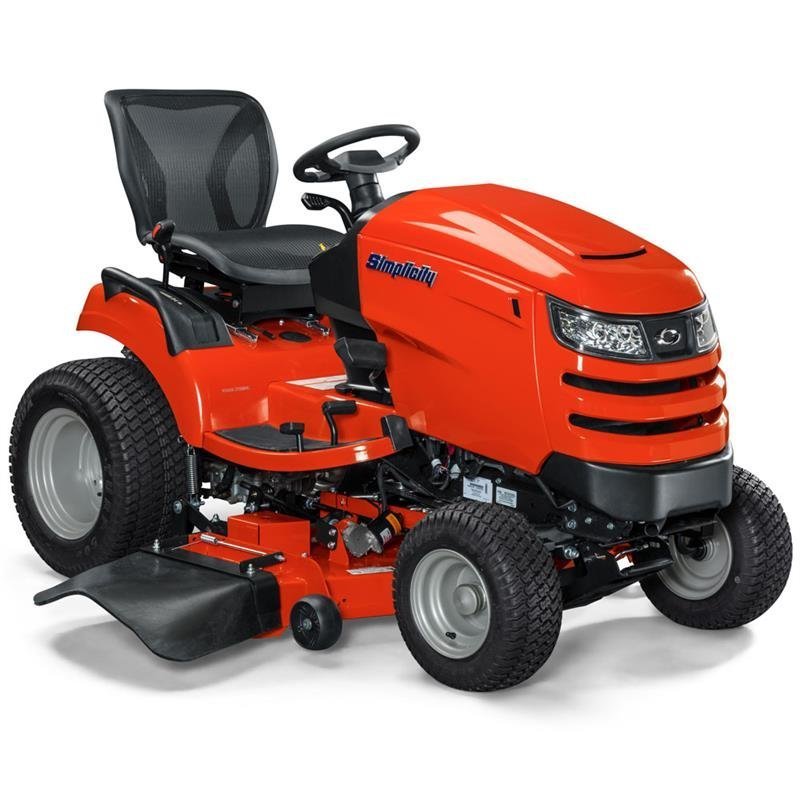

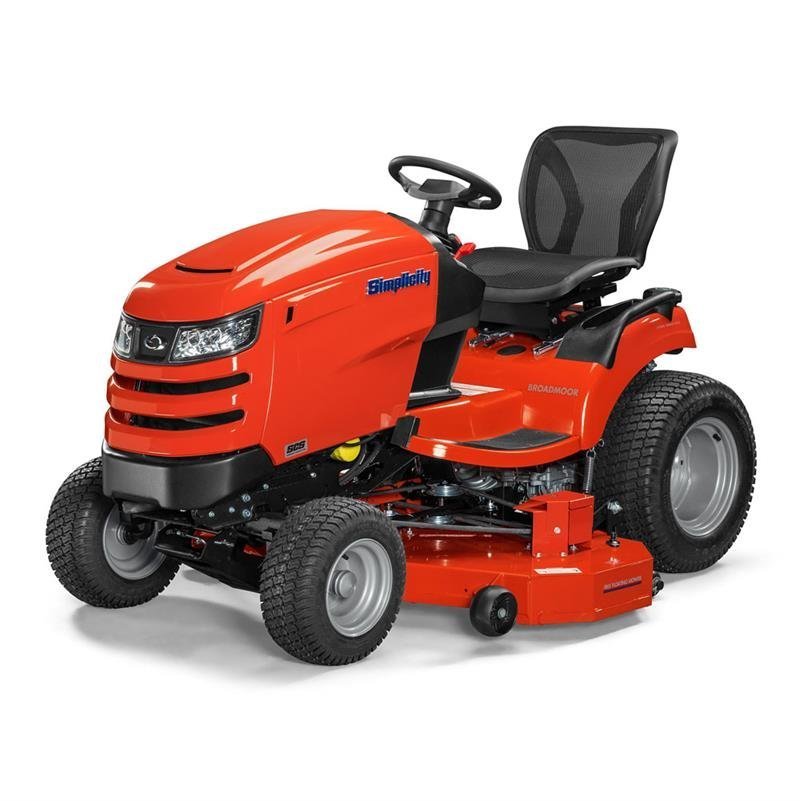

BROADMOOR™ LAWN TRACTOR

Bring Comfort and Performance to Your Lawn

Can a lawn tractor be both high-performing and comfortable? The Simplicity Broadmoor™ answers this question with a definite “YES”! With the unique Free Floating™ Mower Deck, rear suspension and breathable ergonomic mesh tractor seat, mowing the lawn will never feel like yard work.

Model Number

2691674

Marketing Model

25/52″ SCS

Start Type

Electric, Push Button

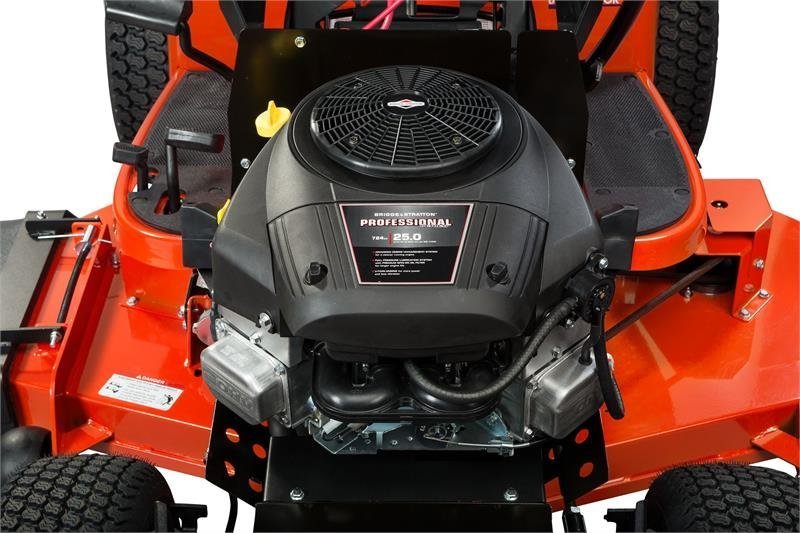

Power Rating *

25

Cylinders

2

Engine Displacement (cc)

724

Choke/Throttle

Ready Start®, Single-Lever

Fuel Tank Capacity (gal)

3.6

Battery (cca)

230

Transmission Type

Tuff Torq® K62

Transmission Differential

Hydrostatic

Ground Speed-Fwd (mph)

0-6.7

Ground Speed-Rev (mph)

0-4.0

Automatic Controlled Traction™

Standard

4-Wheel Drive

N/A

Brake

Disc

Frame Steel

10-Gauge

Front Axle

Cast-Iron

Front Tires (in)

16 x 6.5 – 8 /Turf

Rear Tires (in)

23 x 10.5 – 12 /Turf

Attachment Lift

Integrated Hydraulic Dash Lever

Seat

High-Back Mesh

Suspension

SCS, Rear

Mower Deck Type

Fabricated Free Floating™

Cutting Width (in)

52

Number of Blades

3

Height-of-Cut (in)

1.25 – 4.5

Height-of-Cut Positions

Infinite/Electric

Blade Engagement

Electric PTO Switch

Rear Rollers

Standard, Full-Width Striping

Mower Deck Removal

Integrated Hydraulic Dash Lever

Spindle

Commercial Aluminum w/ Zerk Fittings

Mower Steel Gauge

10-Gauge

Washout Port

Standard

Cruise Control

Standard

Steering

Power Steering

Headlights

Standard, LED

Hour Meter

Standard

Fuel Level Indicator

Digital, Dash

12 Volt DC Outlet

Yes

Hand Grips

Standard

Deluxe Instrumental Panel

N/A

Cup Holder

Standard

Turning Radius (in)

18

Assembled Length (in)

76

Assembled Width (in)

63

Assembled Height (in)

48

Consumer Warranty (Product) **

3-Years

Commercial Warranty (Product) **

90-Days

Fabricated Mower Deck Warranty **

Lifetime
